Rear brake pad sensor removal

1. Equipment

Gather the following equipment to complete this guide. The links below direct you to the exact products I used.

Some links below are affiliate links. I may earn a small commission at no extra cost to you. As an Amazon associate and eBay partner, I earn from qualifying purchases.

• Jack
• Jack stand
• Piece of oak wood (optional)
• Needle nose pliers
• Torx 20 key
• Breaker bar
• 17 mm socket
• Locking wheel nut (if needed)

2. Removal

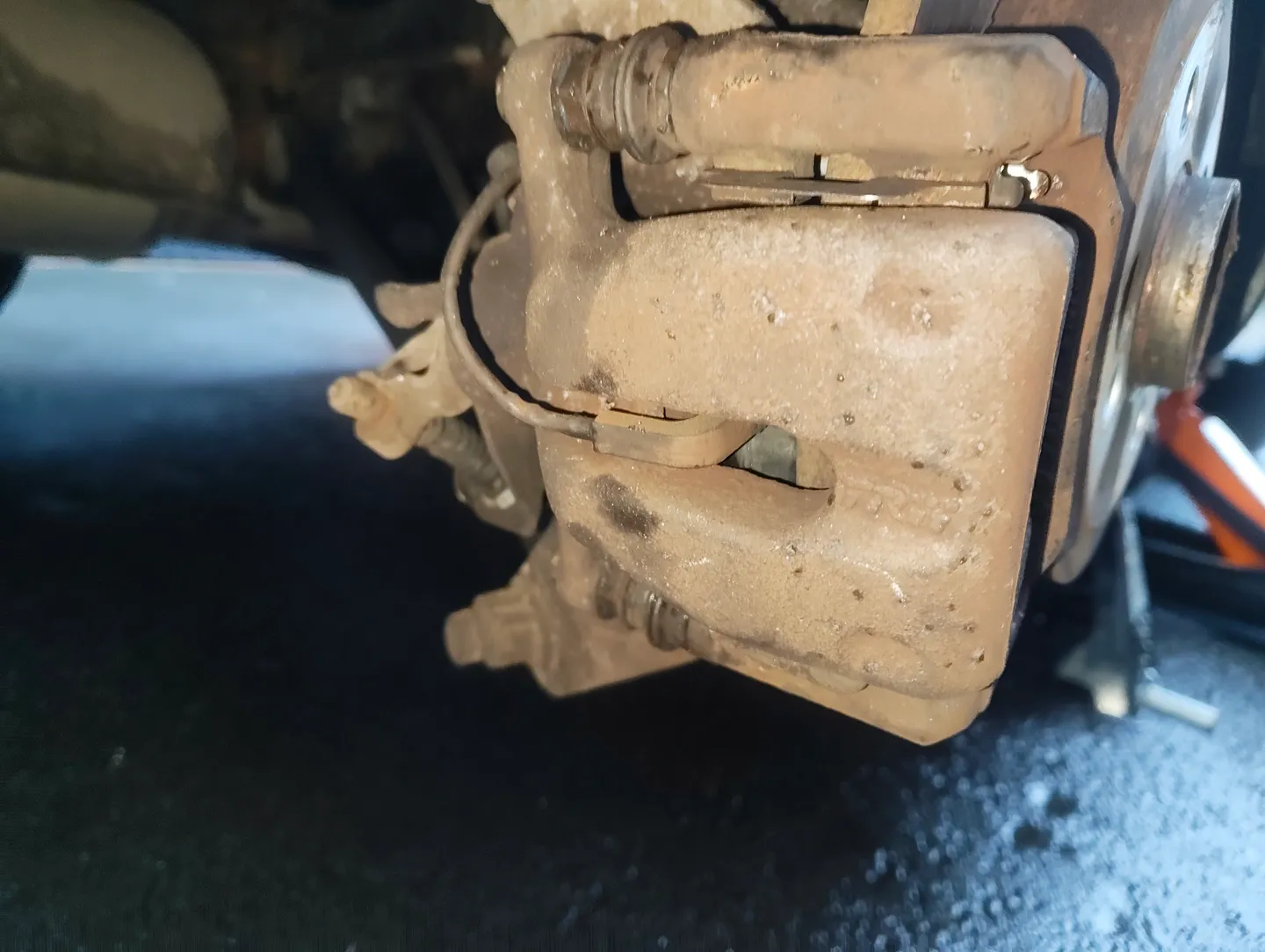

1. Grab your needle nose pliers and pull out the connected sensor from the middle gap of the offside rear brake caliper.

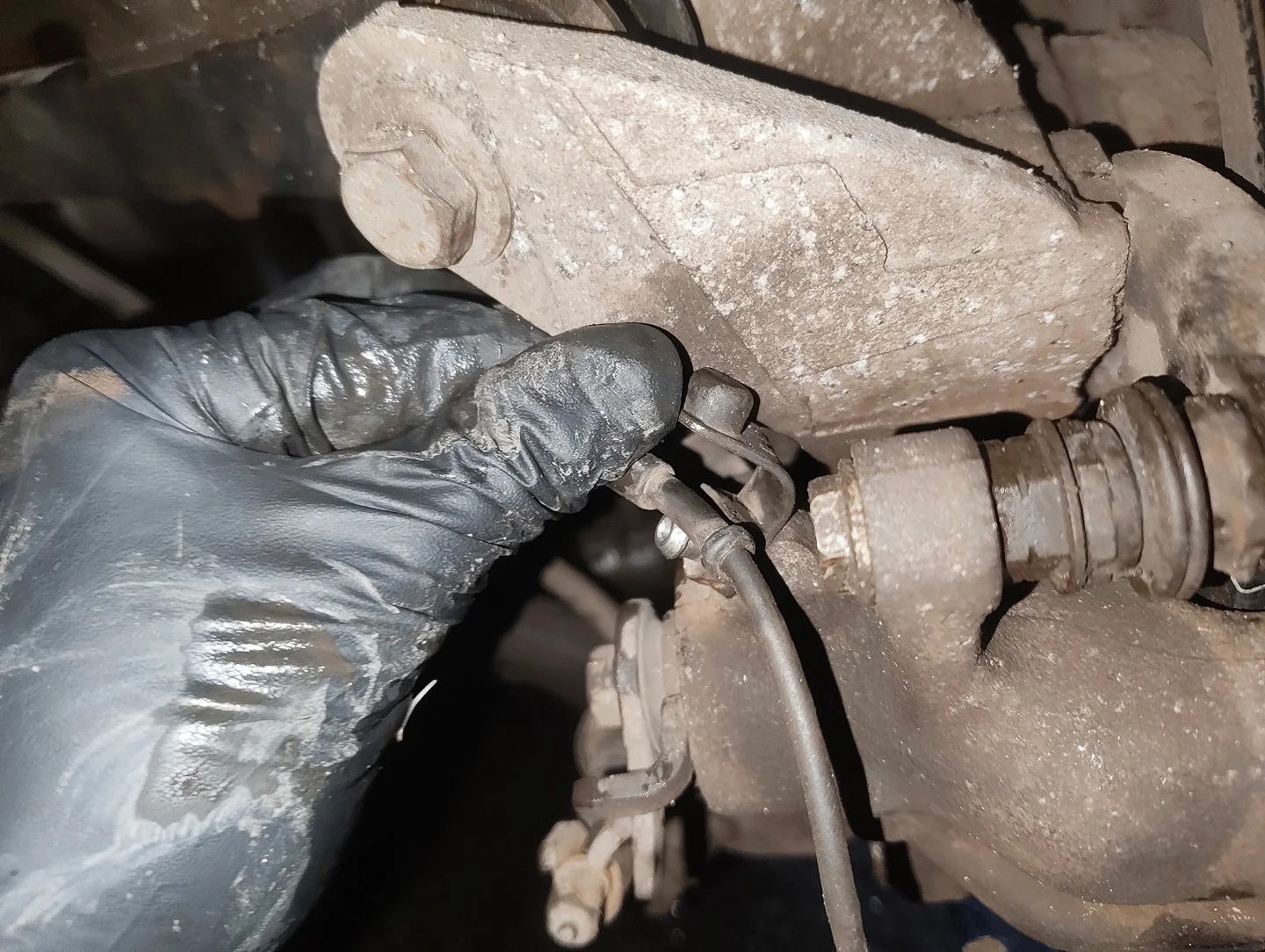

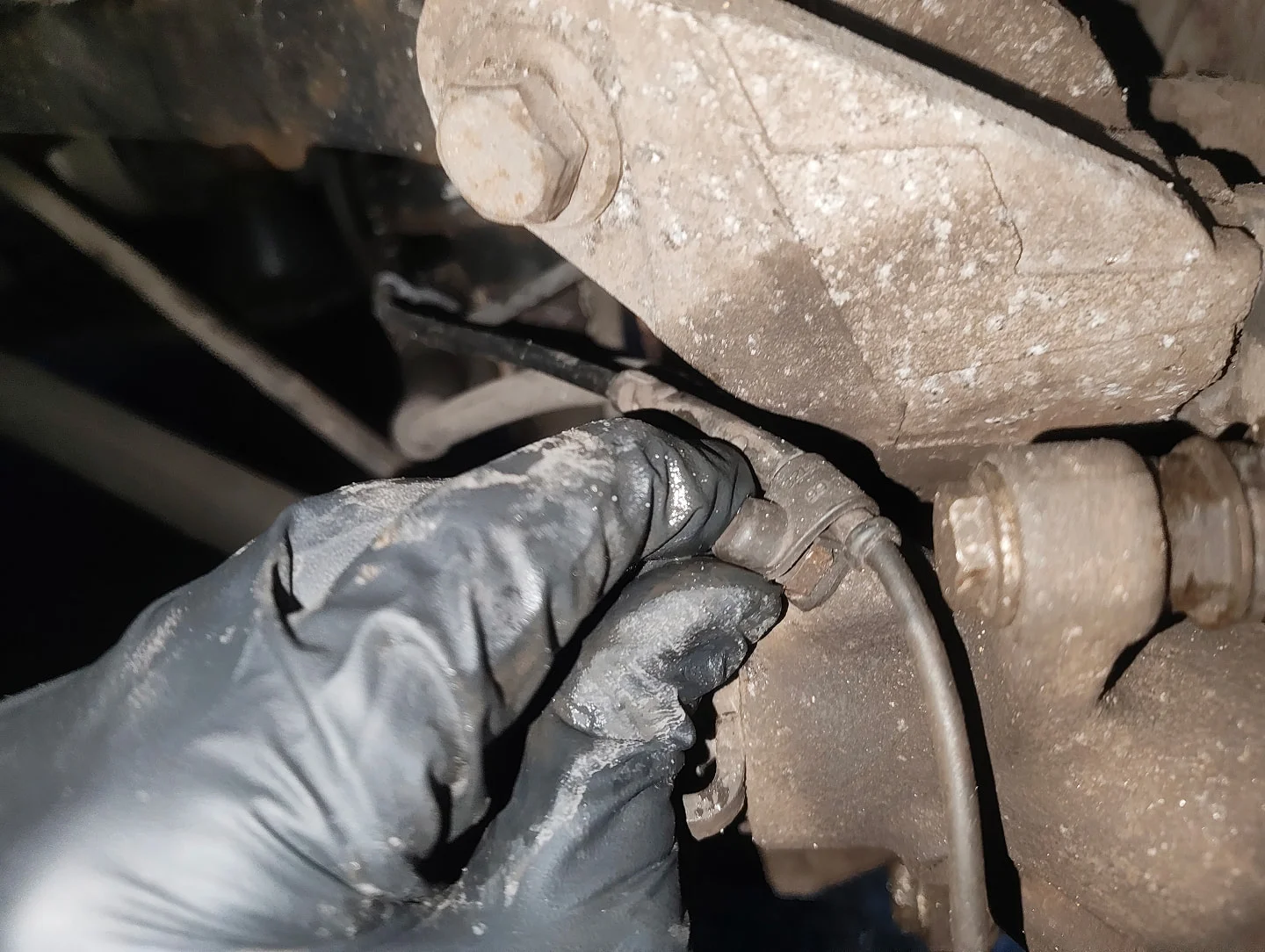

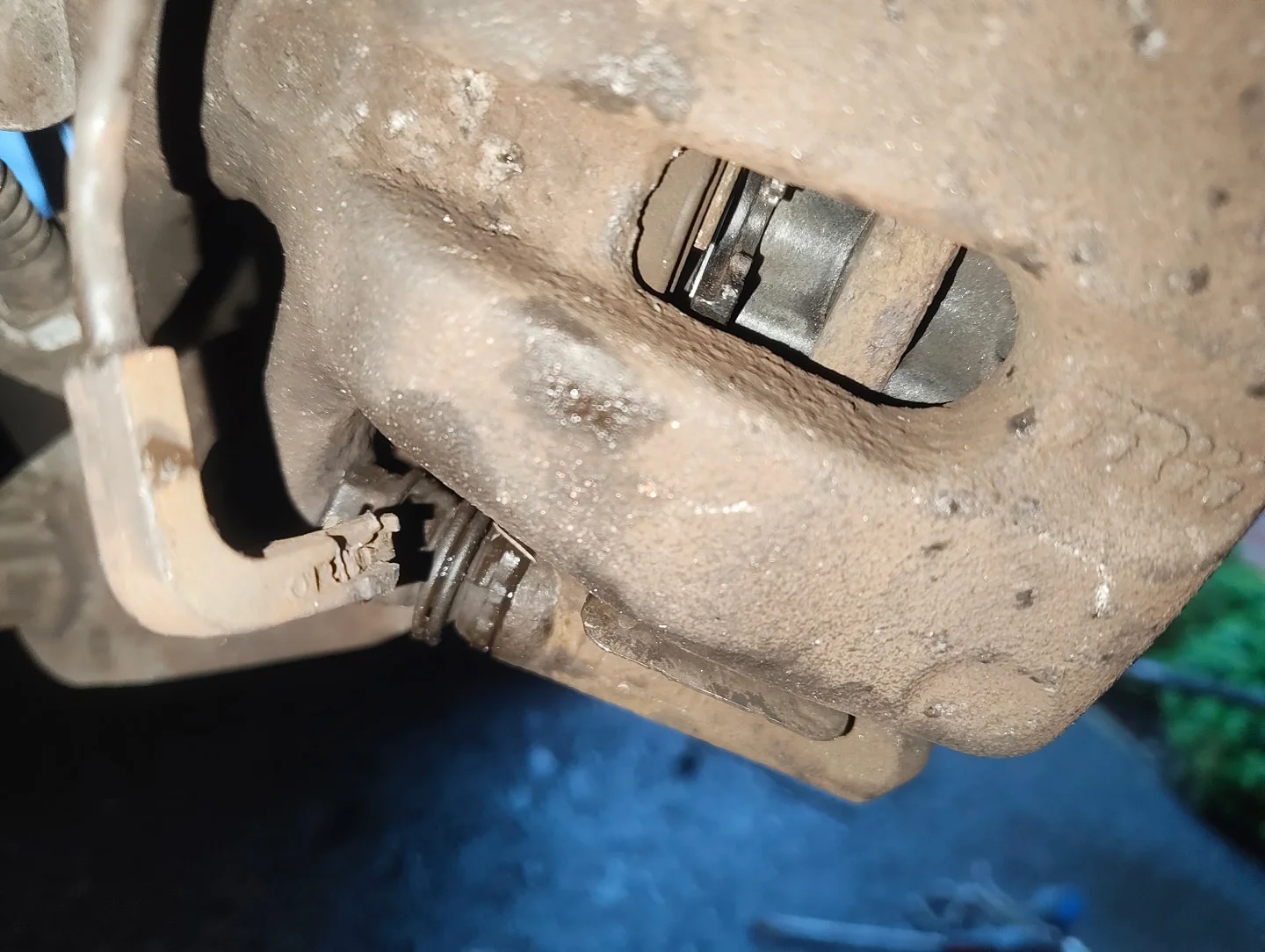

2. Following the sensor cable, detach it from the caliper by removing rubber cap on the brake bleed screw and pulling the cable away.

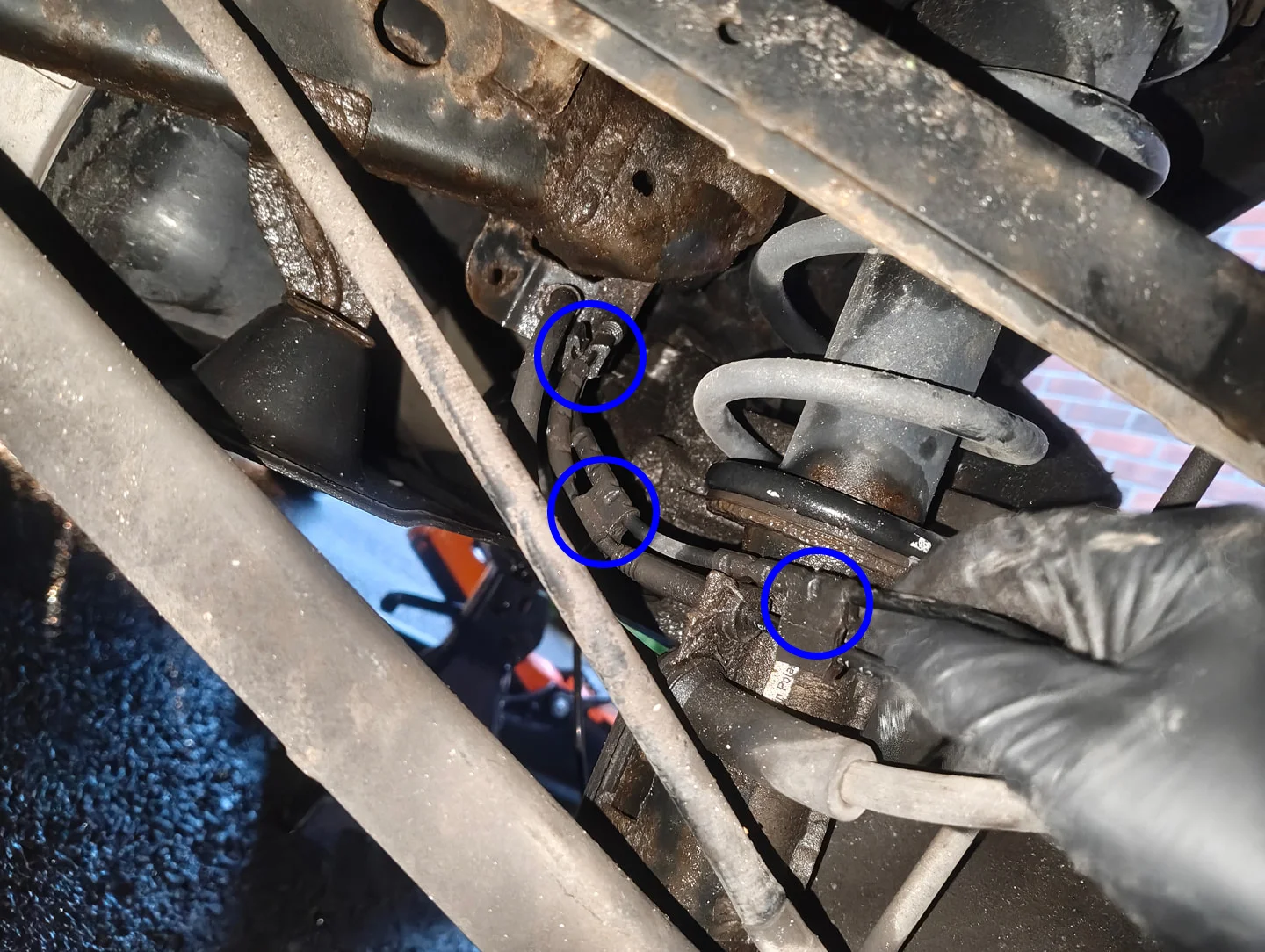

3. Next, following the cable further, detach the sensor cables from three rubber clips with a gentle pull.

   Once all rubber clips are detached, let the cable hang; don't pull at this stage as it's still connected.

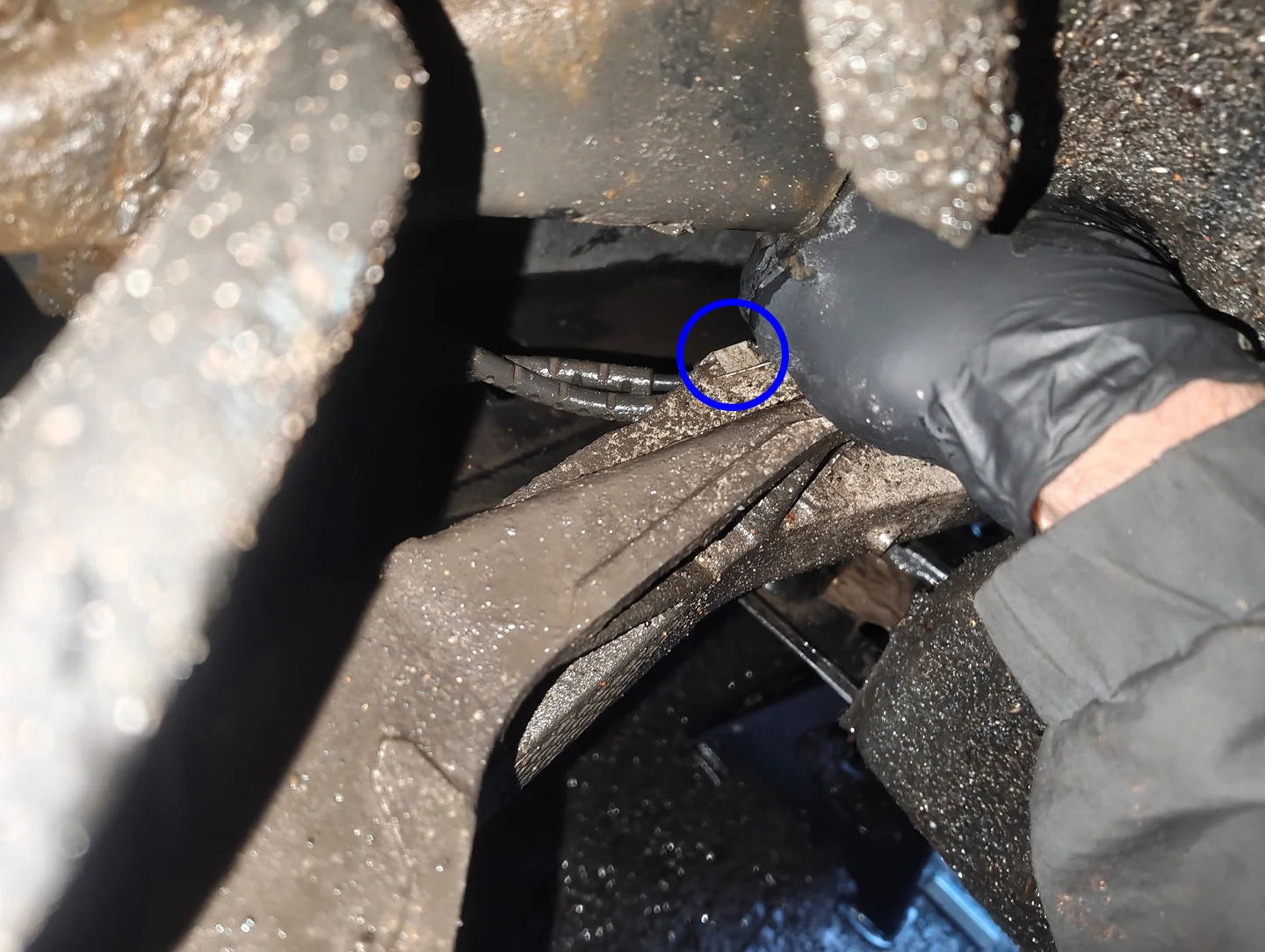

4. Relocate to the wheel well, peer over the suspension arm, and remove the sensor cable from the metal clip that secures it to the chassis. A quick tug down should do it.

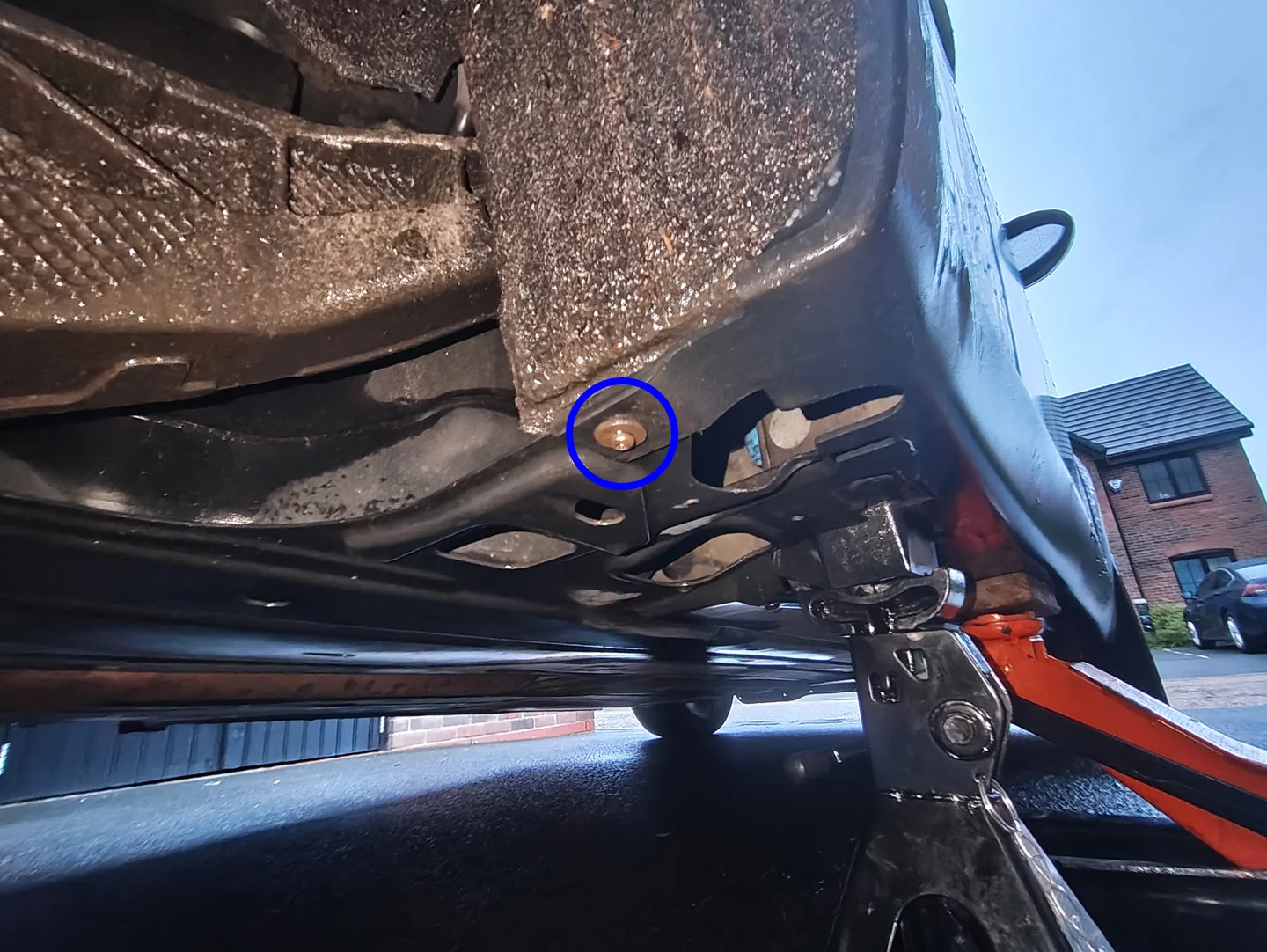

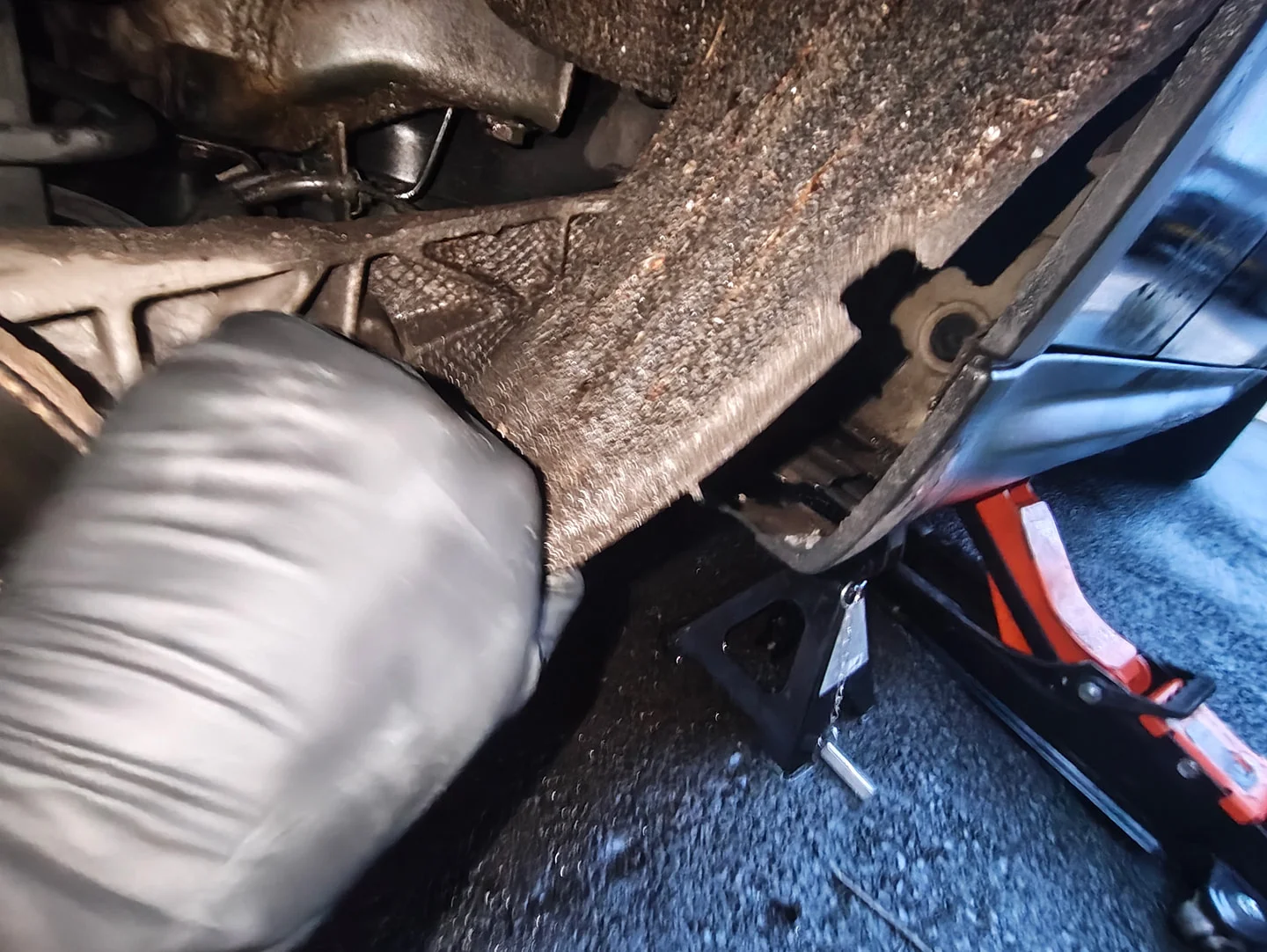

5. Next, grab your Torx 20 tool and move to the bottom right of the wheel well and look underneath. There should be a Torx screw securing the carpet to the fender; remove this screw and pry up the carpet.

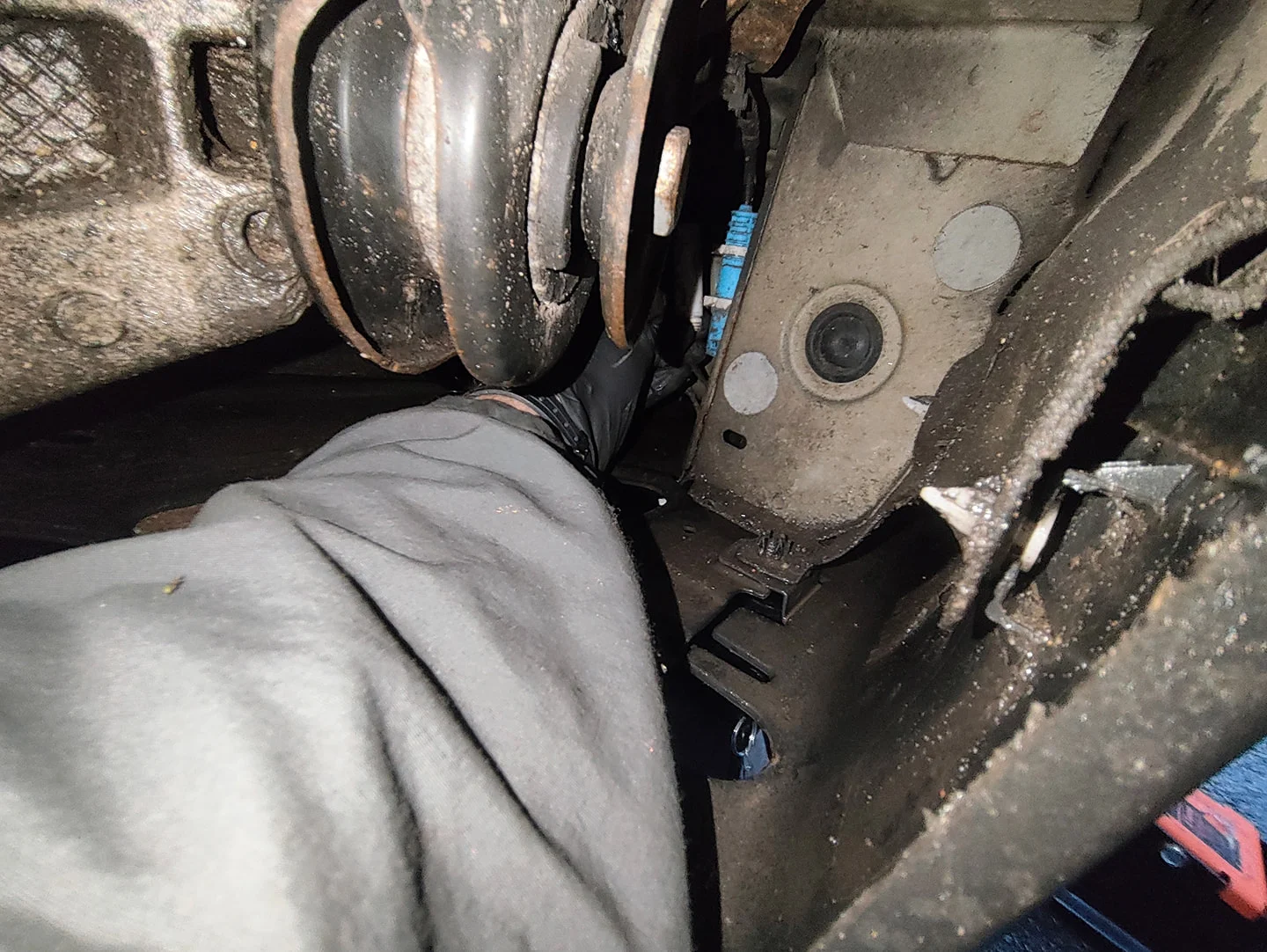

6. Following that, you should immediately see a blue connector on your right. Just behind it, slightly to the right, is a white connector where the brake pad sensor plugs in.

   Reach in and carefully detach the white connector from its bracket (the bracket clips break quite easily, ask me how I know...)

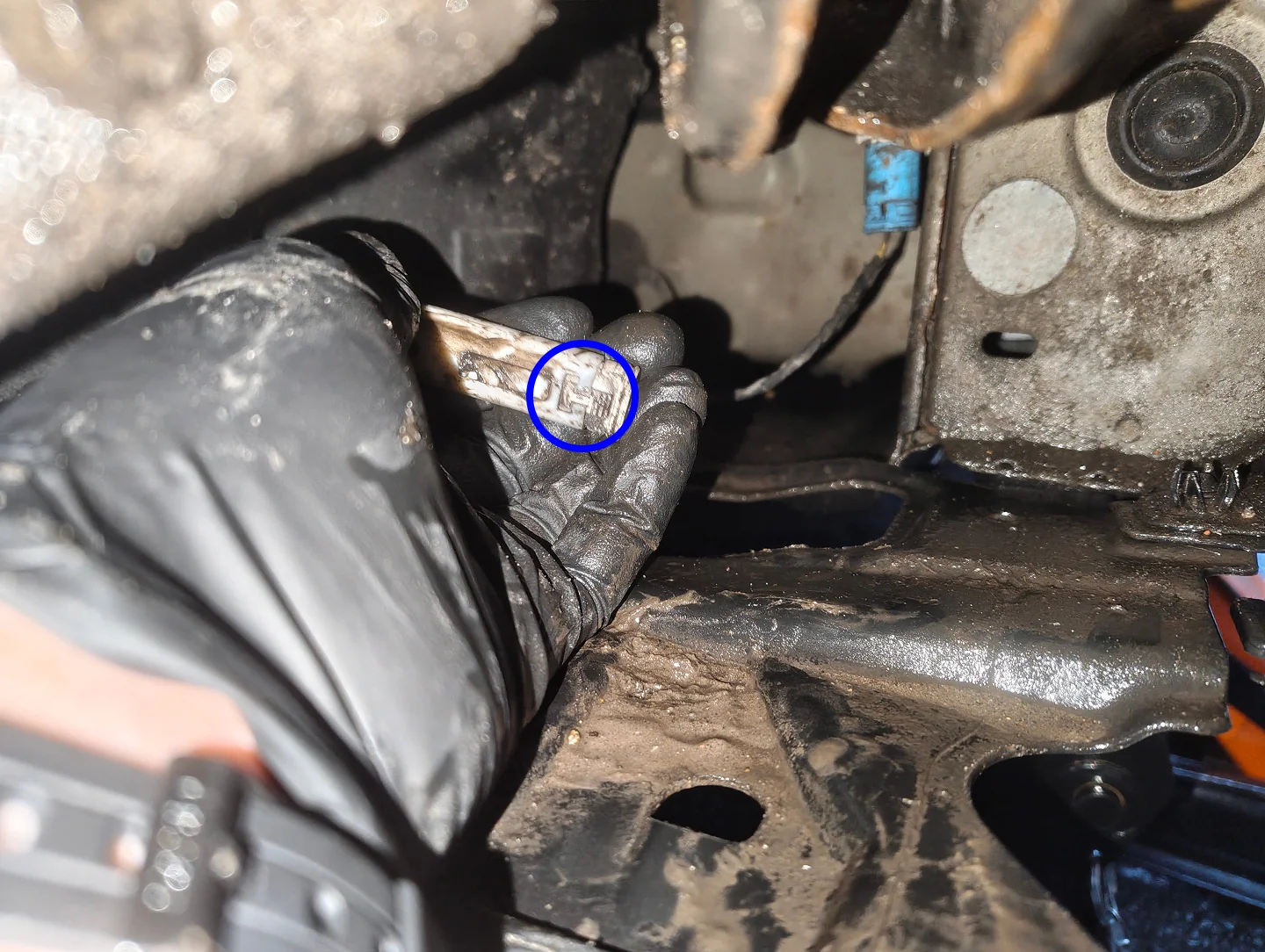

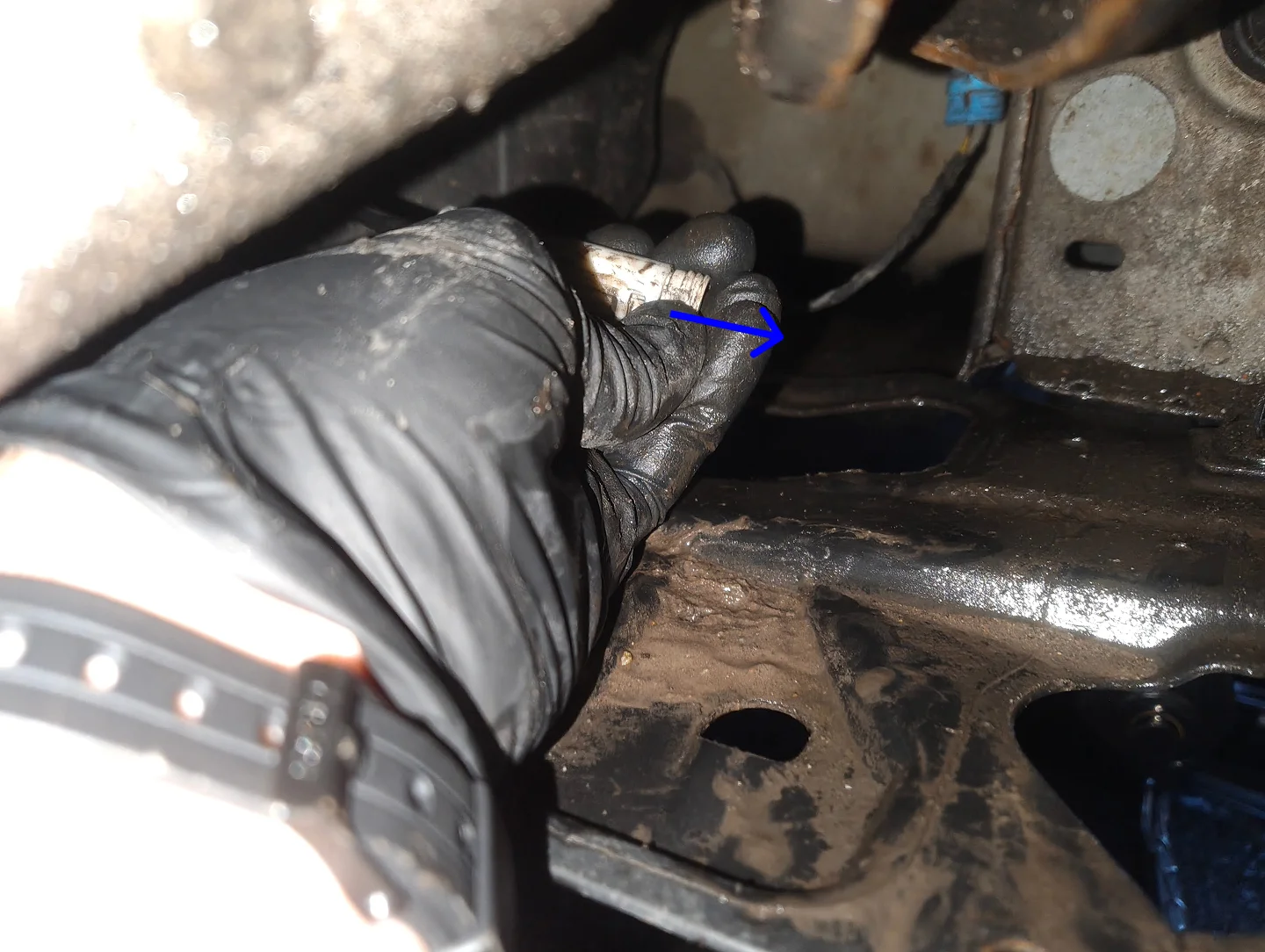

7. Finally, disconnect the sensor by pressing down on the textured tab and pulling outwards.

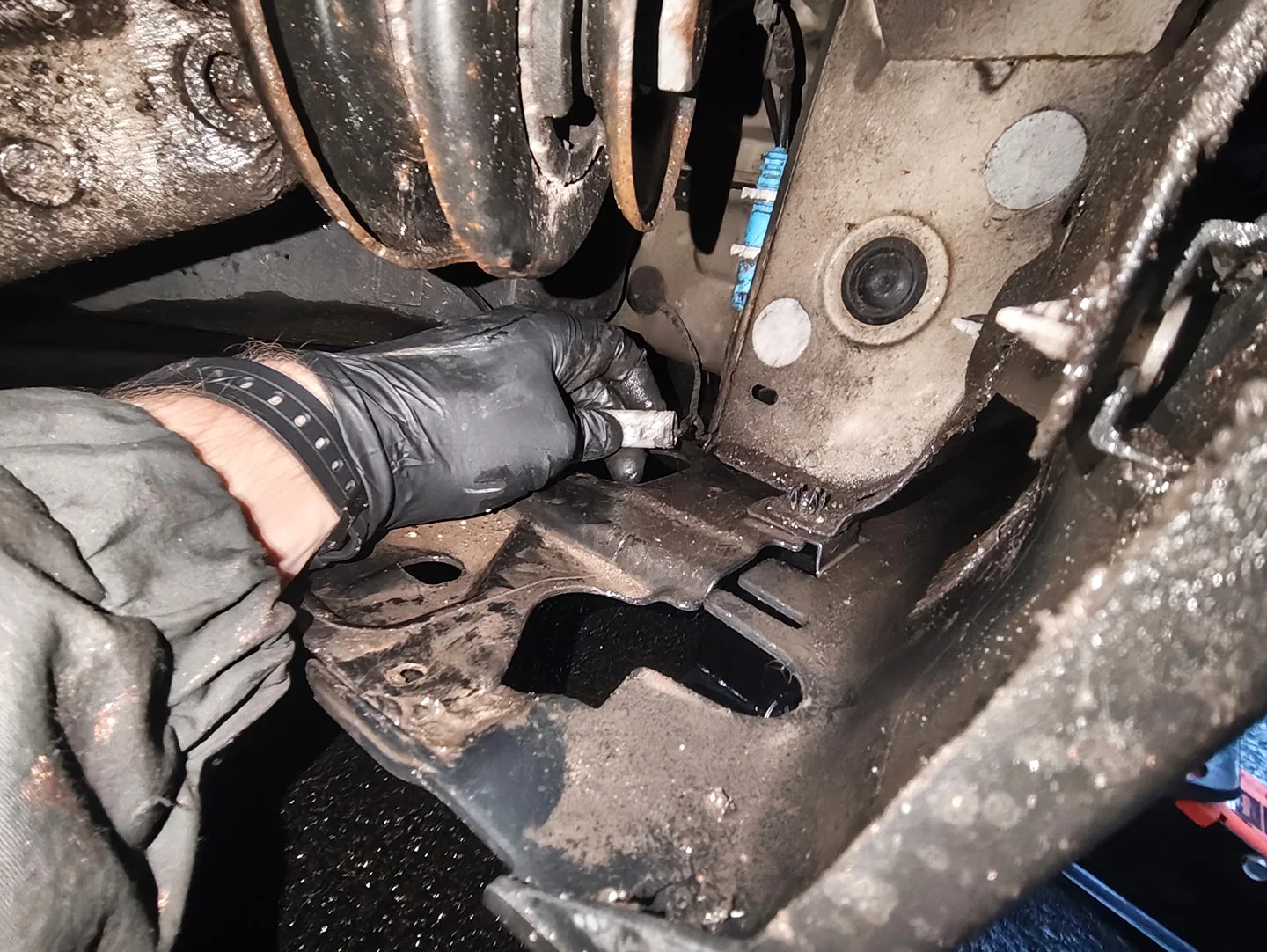

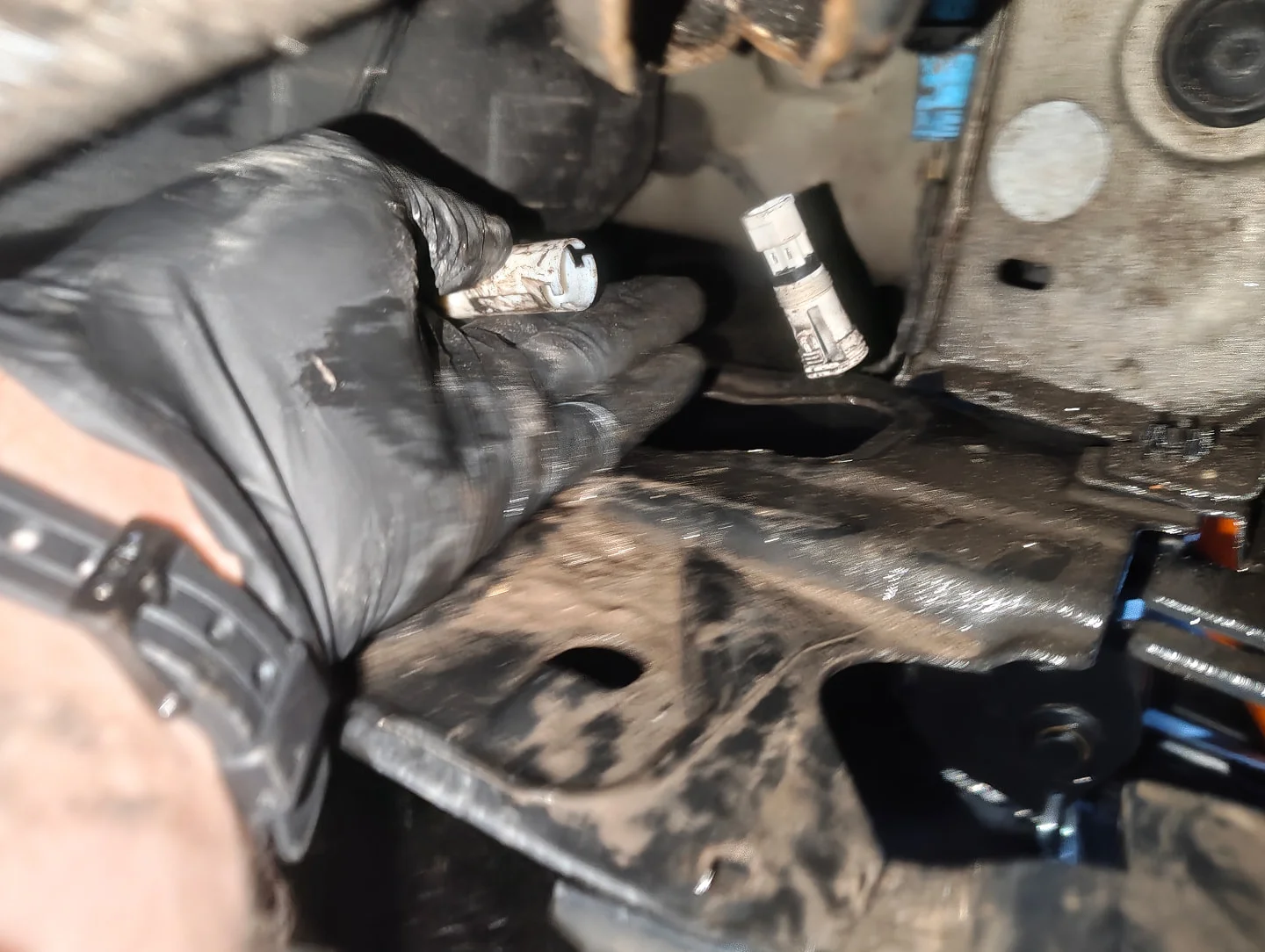

   Once disconnected, you should now be able to pull out the entire brake pad sensor away from the car.
